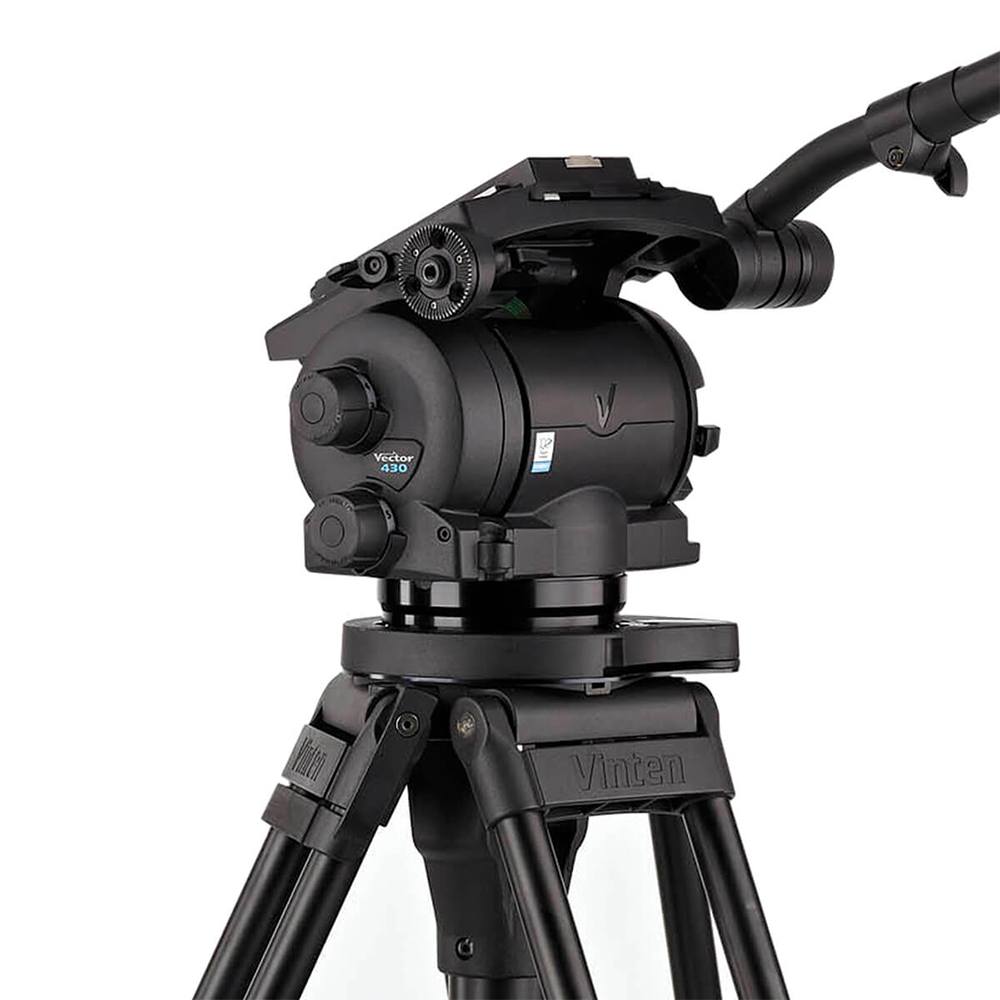

Vinten Vector 430 Pan Tilt Head

The Vector 430 supports compact box lens and large EFP barrel lenses. Its compact and lightweight design perfectly balances an extremely large capacity range of 10-43 kg / 22-94.8 lbs, making it the single choice when previously two heads were required and perfect for multi-camera productions.

Features:

  • Outstanding whip pan control
  • ±90° tilt range across a wide payload range
  • Ergonomic positioning of controls
  • Digital balance readout for quick repeatable set-ups
  • Tilt centrelock to safely swap high payloads
  • Back lit controls for low light conditions

Specification:

  • Payload 10 kg to 43 kg
  • Platform adjustment +55 to -107
  • Tilt adjustment ±40° to ±90°
Category:

Description

The Vector 430 is aimed at the growing number of applications that use both the compact box lens and large EFP barrel lenses. Its unique design has enabled Perfect Balance to be incorporated into a previously unattainable compact and lightweight package whilst providing an extremely large capacity range of 10 – 43 kg. This means that the Vector 430 offers a single choice when previously two heads were required.

Simple to rig and convenient to transport, the compact design of the Vector 430 maintains the functionality associated with Vinten’s renowned Vector heads, including infinitely adjustable Perfect Balance and smooth TF drag technology.
