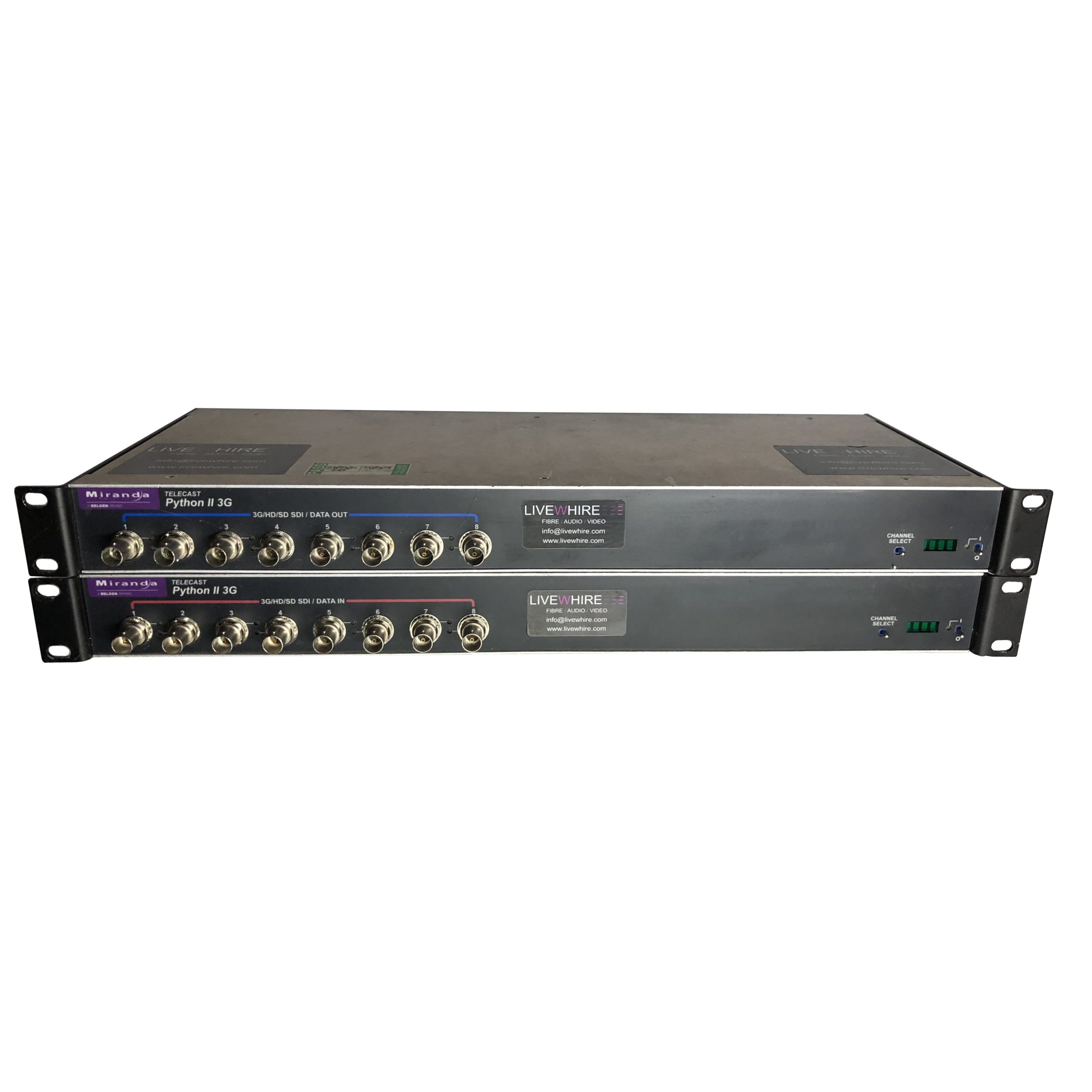

Telecast Python 8-Way 4K
The Python 3G is your answer to lowering the cost of digital video distribution, simplifying your cable plant and eliminating all concerns about distance, interference and grounding. The Python 3G converts up to two groups of 8-channels of HD-SDI to fiber optic transport, all in a compact 1 RU frame.
8 channels per 1 RU
Wide range of digital formats
19.4 Mb/s to 3 Gb/s transport
Handles DVB/ASI signals
Immune to pathological data errors
Equalizes coax up to 3 Gb/s
CWDM multiplexing options
Compatible with other Grass Valley HD/SD-SDI transport systems
Related products
Sony PVMX2400 HDR Monitor
The PVM-X2400 is a 24-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor. This makes group monitoring easy for on-set, studio and truck applications, and in 19” EIA racks for editing, audio mixing etc.
Sony’s acclaimed TRIMASTER architecture delivers accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate colour reproduction, etc.
Dynamic Contrast Drive is a new backlight control system that dynamically changes the panel’s backlight luminance to adapt to changing content enabling you to confirm the total balance of highlights and low lights at a glance. The feature can be used to reproduce black representation in dark content, such as night scenes and provide specular highlights in bright content such as snow field and summer beach scenes. The Dynamic Contrast Drive feature provides a dynamic contrast ratio of 1,000,000:1.
Due to the inherent nature of LCD panels, some backlight leakage is unavoidable. To compensate, Black Detail Mode High/Mid/Low facilitates more accurate monitoring of black detail in dark, low- APL (average picture level) images. The backlight level is reduced but gamma is maintained for correct colour and grey scale. High luminance areas may be clipped due to the dynamic range of the monitor. Any clipped portions can be displayed as clipped or highlighted by a zebra pattern.
Color-matched 4K HDR picture monitors color with the BVM-HX310
Dynamic Contrast Drive and Black Detail High/Mid/Low
Inputs for 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
Unique Quad View display with User 3D LUT
Product Manual
Bluebell Dual Channel 4K
The Dual channel Bluebell is a transmitter module for the conversion of 12G-SDI signals into fibre optical cable. The incoming signals are auto-sensed and then equalised prior to conversion and transmission down a single optical fibre. All Bluebell products are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. A loop out is provided for signal monitoring or distribution.
The kits are extremely compact single channel fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly 12G-SDI signals.
Dual Channel Inputs
Single Optical Fibre
Low Jitter
PRODUCT MANUAL
Ereca Stage Racer
The Stage Racer product line is an ultra flexible solution to connect a stage to an OB VAN.
With the ERECA unique feature for on the fly direction configurable 3G-SDI channels and the numerous commodities signal transmitted along the videos, the stage racer is the product of choice for an affordable fast and easy event deployment.
All our Stage Racers are built in to bespoke 6U racks to utilise all signal functionality.
The equipment assumes transmission of a comprehensive set of signals as follows:
8 or 12 x video 3G / HD / SDI signals (direction configurable through built in web server),
1 x Genlock bidirectional (PAL image / Black burst / Tri-level),
16 x analog audio for intercom or broadcasting,
8 x Microphone pre-amp blocks
2 x Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS),
4 x Data RS 232/422/485,
8 x Contact closures.
4 x AES 3 bidirectional (Riedel panel compatible)
1 x bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors).
For flexible setup the mechanical is declined in a 1U rack which fits everywhere and in a very rugged compact die cast aluminum box. This latter enclosure ensures excellent shock/drop protection along with dust and water resistant capacity for all “no fly case” applications. Links can be built between racks, rugged boxes or rack and rugged box.
All the signals are transmitted on 2 singlemode fibers. As an option, an optical cable failover is built inside the modules by adding a second connector. In case of fiber break the equipment automatically select the other cable.
PRODUCT MANUAL
Blackmagic 12G Dual Channel
Blackmagic Design Mini Converter Optical Fibre 12G - Bi-Directional SDI to Optical Fibre
Mini Converter Optical Fibre 12G converts SDI to optical fiber and optical fibre to SDI in both directions at the same time, you can even have different video standards going in each direction. The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fibre module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
