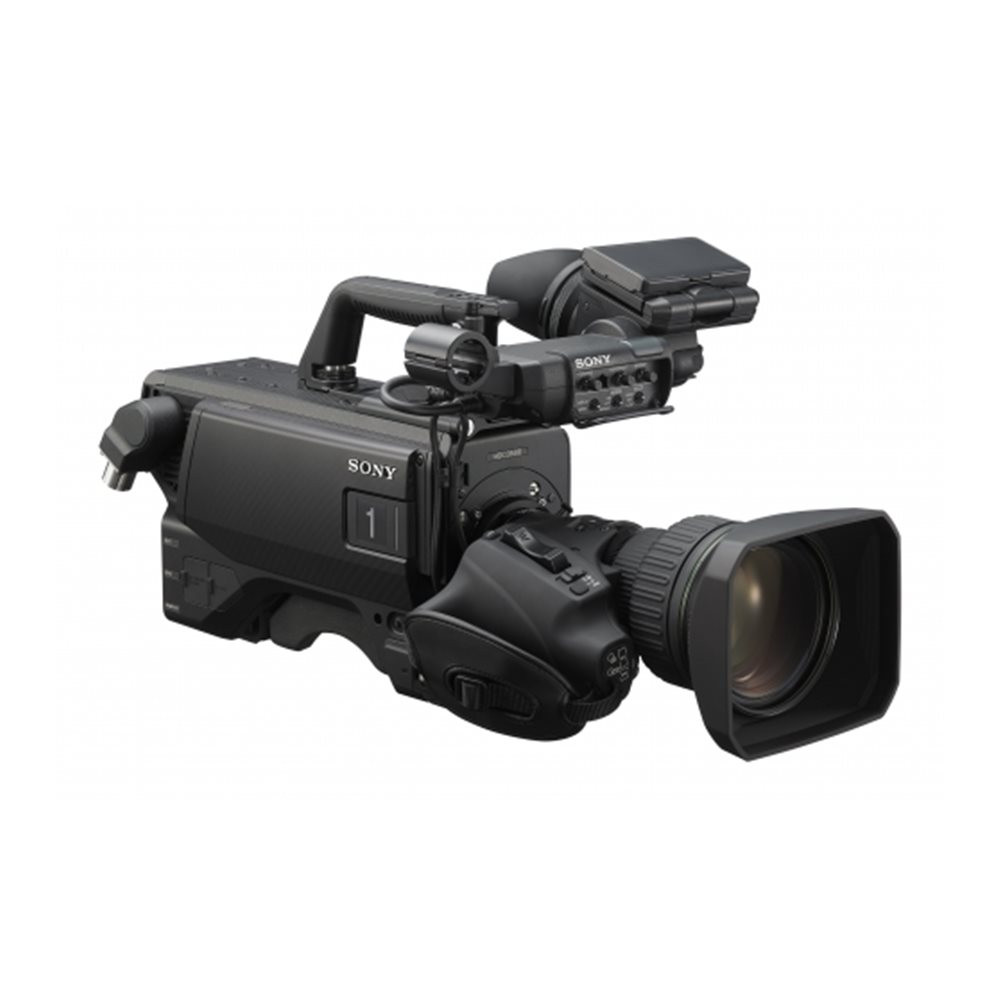

Sony HDC-3500 4K/HD Camera System

The HDC-3500 4K system camera brings new levels of image quality, portability and creative flexibility to live production environments. Enjoy premium 4K/HD/HDR picture quality – and anticipate tomorrow’s production needs while maintaining full compatibility with today’s workflows and system hardware.

Features:

  • Easy transmission change
  • Wider workflow options
  • Simple solution for IP remote production
  • The go anywhere camera
  • Seamless integration
  • 4x slow motion
  • Display camera number and tally
  • Rich focus assist functions
  • Servo controlled ND and CC filters
  • Network TRUNK
Categories: ,

Description

The Sony HDC-3500 4K system camera brings new levels of image quality, portability and creative flexibility to live production environments. Enjoy premium 4K/HD/HDR picture quality – and anticipate tomorrow’s production needs while maintaining full compatibility with today’s workflows and system hardware.

Capture premium pictures with the world’s first 2/3-inch 4K CMOS sensor with global shutter technology that eliminates the ‘jello effect’ and banding noise. This allows the HDC-3500 to capture pristine images with 4K high resolution (2000TVL), exceptionally low noise (-62dB), impressive sensitivity (F10 at 1080/59.94p or F11 at 1080/50p) and high dynamic range, while achieving the ITU-R BT.2020 broadcast standard wide colour space. It’s teamed with a specially developed LSI Digital Signal Processor that fully realises the extraordinary imaging power of this new sensor.

Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key Saturation ensures rich, vibrant colours in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.

The Sony HDC-3500 can capture High Dynamic Range images, supporting Sony’s SR Live workflow for simultaneous HDR/SDR production with reduced inventory requirements.

Complete Channel With:

IP/SDI Board
4K License
Ember+
HDCU-3500
HDVF-EL75 Viewfinder
HDVF Monocular
3500 RCP
Camera Rain Cover
Camera Shoe
Viewfinder Hood
