Back to Lenses

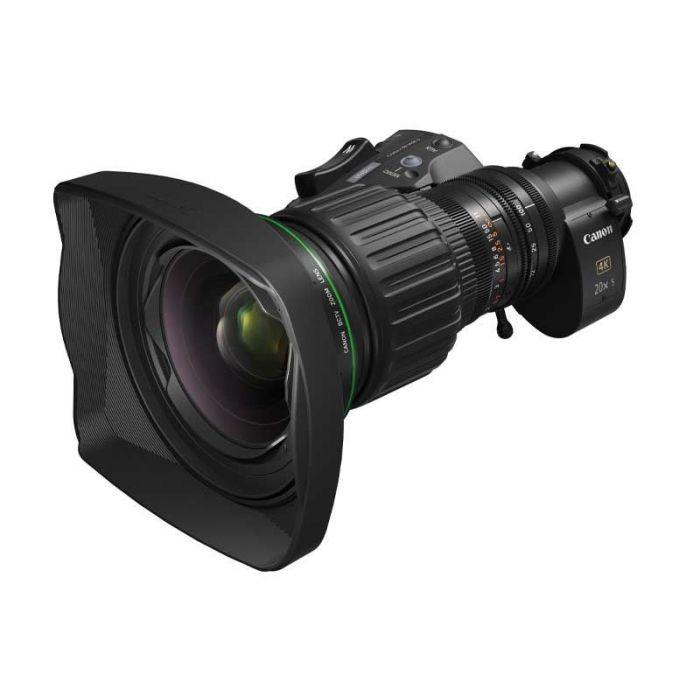

Canon CJ20ex5b 4K Lens

A hybrid concept that offers 5.0mm wide angle to 100mm telephoto (10-200mm with 2x extender), for a wide variety of broadcast applications

Features:

  • UHDxs class 4K optical quality.
  • A hybrid concept wide angle telephoto lens
  • 5.0-100mm zoom range (10 -200mm with optical extender)
  • f/1.8 – f/2.95 maximum aperture
  • Built-in 2x extender
  • Enhanced digital drive unit
  • Virtual systems compatibility via 16-bit encoding
Categories: ,

Description

Canon CJ20ex5B IASE S. A hybrid concept that offers 5.0mm wide angle to 100mm telephoto (10-200mm with 2x extender), for a wide variety of broadcast applications

With 4K resolution from the centre of the image to the outer edges and advanced lens Coatings, the lens virtually removes chromatic aberration, ghosting & flare and provides stunning UHDxs optical quality.

3x 20-pin connectors enable readouts of highly accurate positional information for virtual applications even when using the zoom and focus controllers at the same time. A high resolution 16-bit encoder ensures accurate positional information detection, for easy calibration without initialising the lens as well as precise tracking when matching actual and virtual images.
