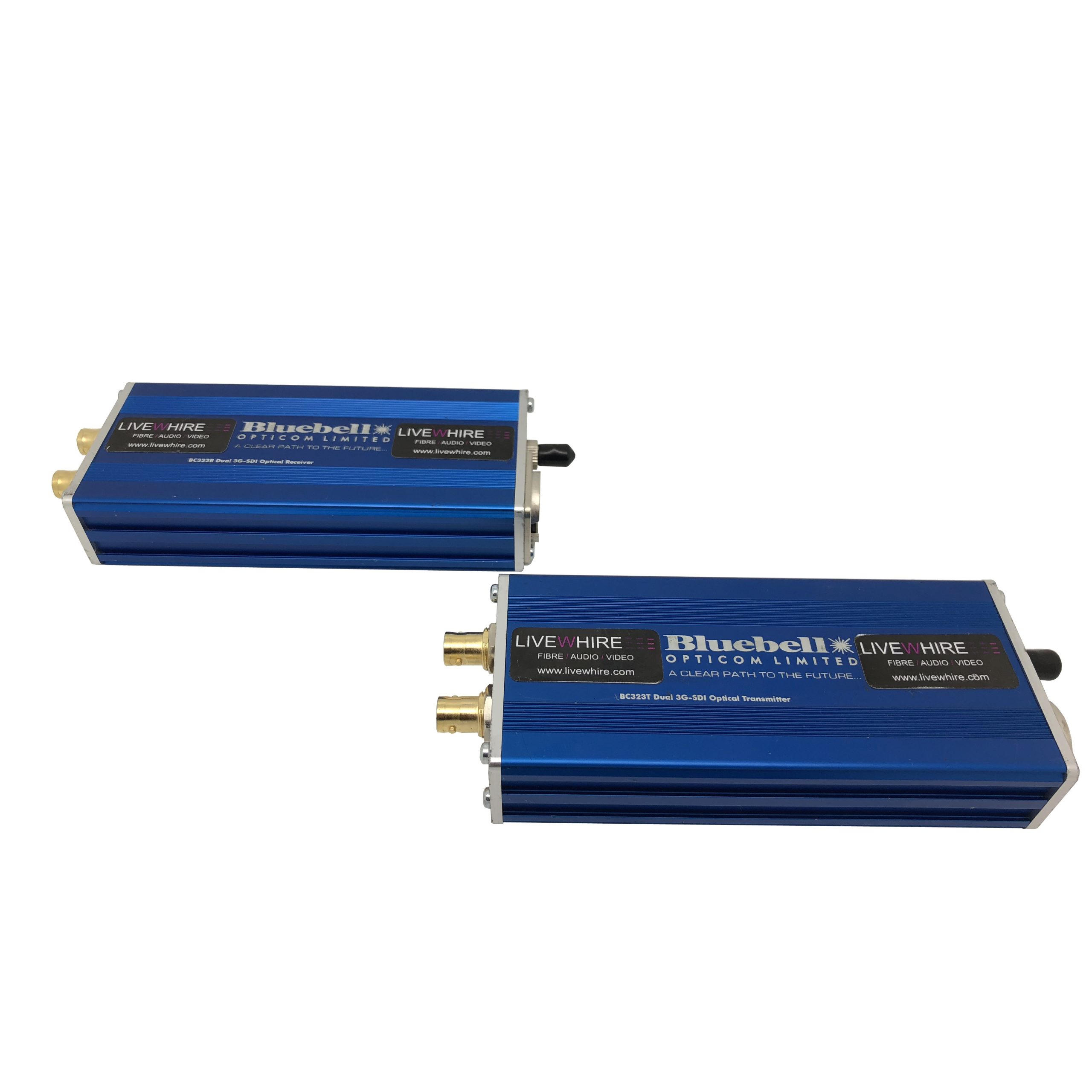

Bluebell Dual Channel 4K
The Dual channel Bluebell is a transmitter module for the conversion of 12G-SDI signals into fibre optical cable. The incoming signals are auto-sensed and then equalised prior to conversion and transmission down a single optical fibre. All Bluebell products are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. A loop out is provided for signal monitoring or distribution.
The kits are extremely compact single channel fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly 12G-SDI signals.
Dual Channel Inputs
Single Optical Fibre
Low Jitter
Related products
Telecast Python 8-Way 4K
The Python 3G is your answer to lowering the cost of digital video distribution, simplifying your cable plant and eliminating all concerns about distance, interference and grounding. The Python 3G converts up to two groups of 8-channels of HD-SDI to fiber optic transport, all in a compact 1 RU frame.
8 channels per 1 RU
Wide range of digital formats
19.4 Mb/s to 3 Gb/s transport
Handles DVB/ASI signals
Immune to pathological data errors
Equalizes coax up to 3 Gb/s
CWDM multiplexing options
Compatible with other Grass Valley HD/SD-SDI transport systems
PRODUCT MANUAL
Telecast SHED HDX
SHED stands for SMPTE Hybrid Elimination Device, and that is what it is. It is a small adapter that allows you to use ordinary single-mode optical fibre for your HD, 4K and slow-motion camera links and in your venue/facility infrastructure, and eliminate bulky hybrid wire/ fibre.
SHED adapter shown with HDX camera power unit cables. Use two small adapters — one at your base station and one at your camera — and locally power your camera, or use the HDX unit to power the camera through the hybrid tail cable. With the SHED units you can support several cameras on one lightweight fibre cable.
Allows the use of conventional single-mode fiber cable
Uses common SMPTE ST 304 connectors for a hybrid link
Extends manufacturer’s distance limits of the camera/CCU
Supports Sony cameras
Built-in optical power meter
Cameras Supported: Sony 1500/1500R/2500/4300
PRODUCT MANUAL
TP Link Gigabit Ethernet Converter
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers(9.3 miles).
Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 15km(9.3 miles)
PRODUCT MANUAL
Sony PVMX2400 HDR Monitor
The PVM-X2400 is a 24-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor. This makes group monitoring easy for on-set, studio and truck applications, and in 19” EIA racks for editing, audio mixing etc.
Sony’s acclaimed TRIMASTER architecture delivers accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate colour reproduction, etc.
Dynamic Contrast Drive is a new backlight control system that dynamically changes the panel’s backlight luminance to adapt to changing content enabling you to confirm the total balance of highlights and low lights at a glance. The feature can be used to reproduce black representation in dark content, such as night scenes and provide specular highlights in bright content such as snow field and summer beach scenes. The Dynamic Contrast Drive feature provides a dynamic contrast ratio of 1,000,000:1.
Due to the inherent nature of LCD panels, some backlight leakage is unavoidable. To compensate, Black Detail Mode High/Mid/Low facilitates more accurate monitoring of black detail in dark, low- APL (average picture level) images. The backlight level is reduced but gamma is maintained for correct colour and grey scale. High luminance areas may be clipped due to the dynamic range of the monitor. Any clipped portions can be displayed as clipped or highlighted by a zebra pattern.
Color-matched 4K HDR picture monitors color with the BVM-HX310
Dynamic Contrast Drive and Black Detail High/Mid/Low
Inputs for 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
Unique Quad View display with User 3D LUT
Product Manual
